Jaguar Industrial

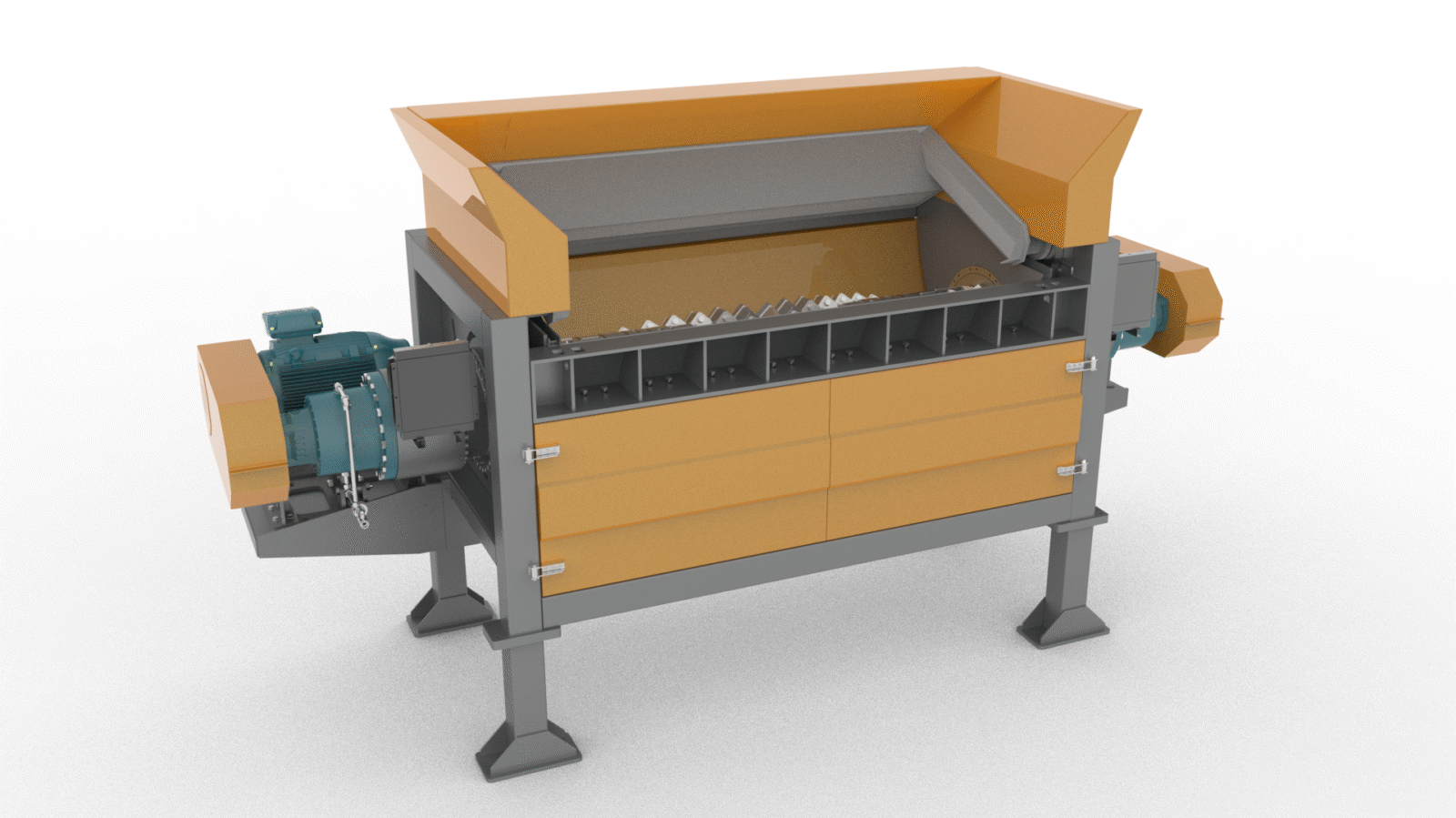

SINGLE SHAFT CRUSHER

CRUSHING, SECONDARY

To exemplify the power of the material that is pre-ground, or of medium size;
To visualize the process in a single step, and with the grill on high;
To visualize the grain size is uniform;
✔ High performance and productivity;
✔ You can drive a high-performance electromechanical;
✔ Replacement of the knife with just hand tools.

MONOEIXO

DIFFERENTIAL

1×100 –

2x200cv

Total Power

1800 –

3000mm

Dining area



750mm

The diameter of the Rotor

35 –

300 mm

The grain size of the Output



30 t/h

Capacity

Low energy cost: Due to the low speed and high torque in the rotor.
The maximum efficiency is: The electric motor of the high-performance associated with the variable frequency drives of the latest generation.
Ease of use: Remote control panel with a graphical user interface, touchscreen 7”
With the flexibility of operation: The grilles to replace the system from the external adjustment of the counter knife.

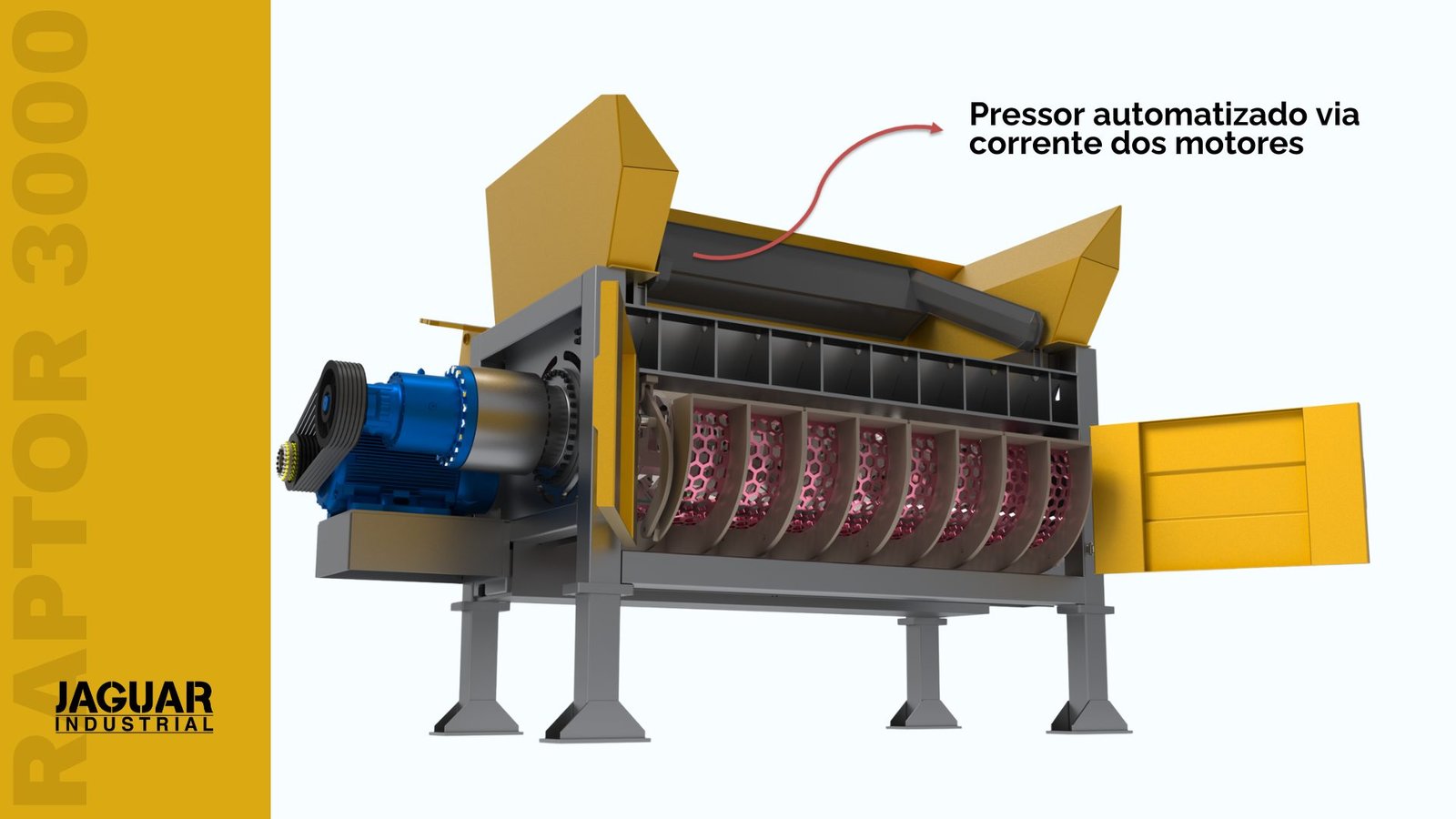

SINGLE SHAFT CRUSHER
FOR CRUSHING, SECONDARY

BENEFITS

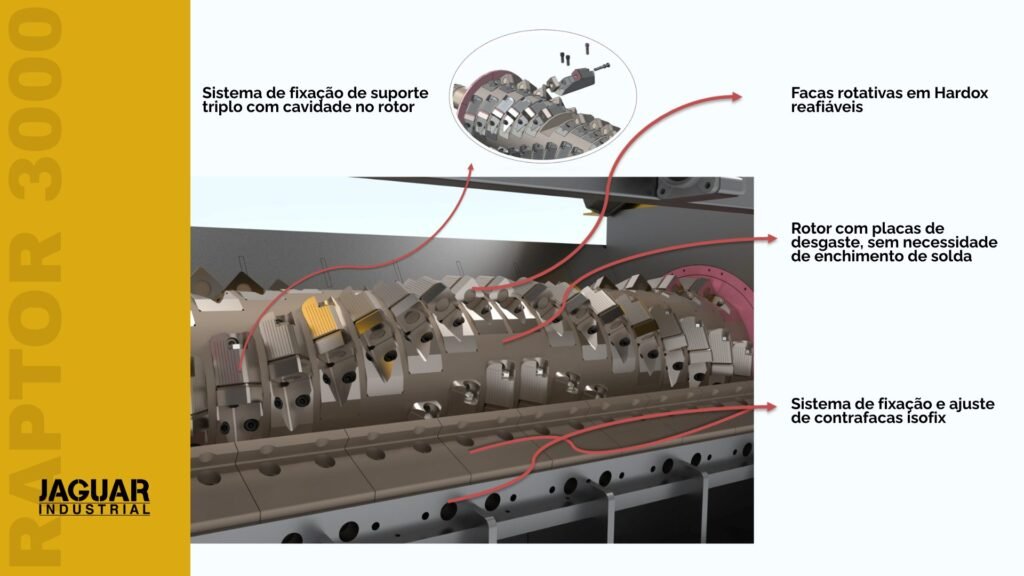

Our high-monoeixo you can grind a wide variety of materials, mainly due to its high torque and a choice of three cutting tools (50 mm, 87mm-110mm)

Lightweight high-performance materials that require a large area of the screen to increase the flow rate are not an issue for our high, it has a great turning radius and so offers a wide range of screening

Depending on the material and on the particle size is desired, a different knives, and the perforated screens were selected, thus allowing for high performance milling in a variety of materials.

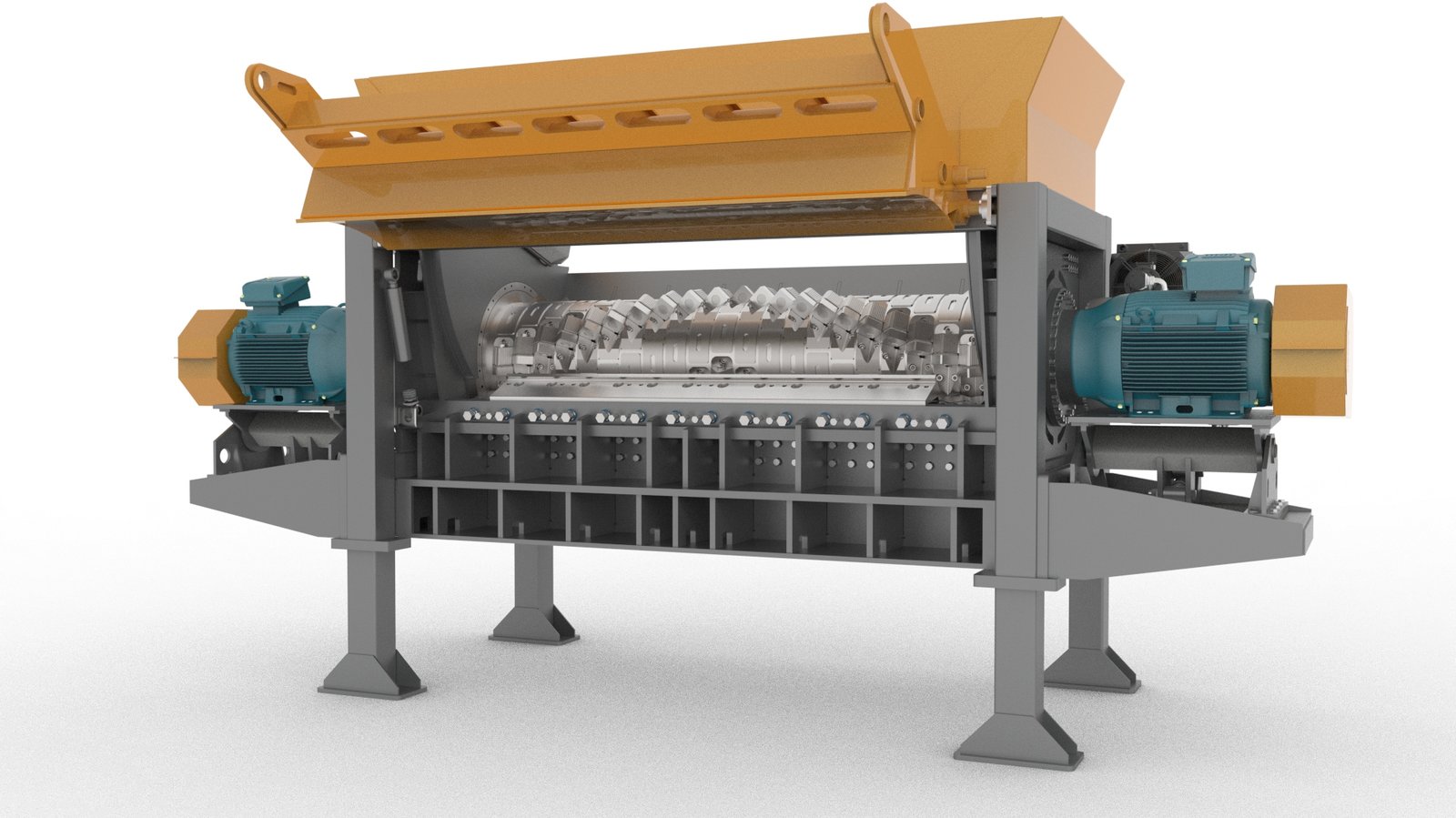

The outputs of 2 to 30 t/h, is obtained by a top choice among the perforated screen and the size of the knife and the knife to his replacement is an activity that is easy to apply, with a hydraulic opening device, access to the area of the replacement of the knife.

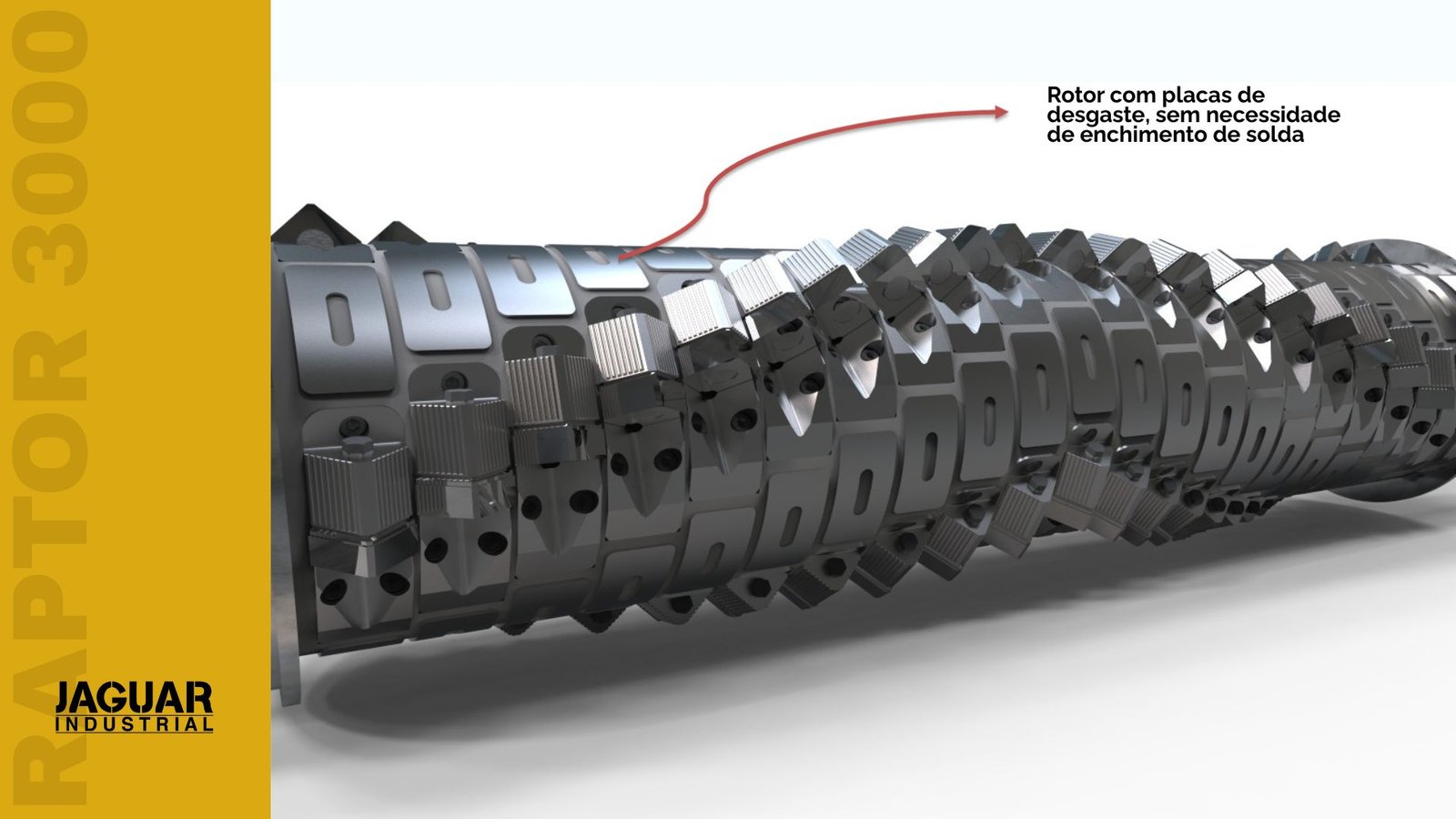

DIFFERENT ROTORS, AND APPLICATIONS

The low rotational speed of the rotor allows for reliable operation, with a number of advantages: resistance to metal contaminants and minerals, and the protection of the transmission system, the low temperature of the crushing of the materials.

We still have the protection against large contaminants, our unique system and the transmission through the clutch, which protects the whole system of transmission, and to maintain a high service life of the gear box.

SAVINGS ON OPERATING COSTS

New developments in technology that allowed it to strengthen to a maximum of the requirements of power and torque for the goods. Currently, our products are supplied with one package of the technology driven, and remote assistance to increase the cost and minimize downtime.

Our drive for electromechanical allow for energy savings of up to 60% in comparison with the equipment powered by diesel. We have a high efficiency at every point of the mechanical transmission from the electric motor under the demands of high performance, through the transmission of a low-inertia, and ending on the variable frequency drives that are optimized to bring out the best in each of the engine.

As for the package, remote access, extended downtime, and the cost of air tickets, and the displacement is minimized, since you can remotely access your system to the automated system in the search for solutions to problems, and the identification of abnormalities.

In addition, the operator interface allows the operator to verify that the sensors and alarms of the equipment, thus allowing for a rapid solution to the problems of day-to-day, to maximize the availability of the equipment.

Accessories

Got a question?

Be sure to check out all of the information that is in our catalog! We are the solution for the grinding of solid wastes! Regardless of the material to be broken, or the need for it.
