19 3935-7676 / 19 3935-5091
✔ A large area of supply;
✔ Knives in whole or service;
Feature highlights: ✔ easy-to-replace the knife;
✔ Quick maintenance.
✔ Low cost.
PR4000-300cv
PR5000-400cv
Rated Power
1600x2000mm
2000x2500mm
Dining area
700mm
860mm
The diameter of the Rotor
25 a 40 rpm
The speed of the rotor
Low energy cost: Due to the low speed and high torque in the rotor.
The maximum efficiency is: The electric motor of the high-performance associated with the variable frequency drives of the latest generation.
Ease of use: Remote control panel with a graphical user interface, touchscreen 7”
With the flexibility of operation: Knives for insert parafusáveis, and the well-known system, a Jaguar in exchange for knives.

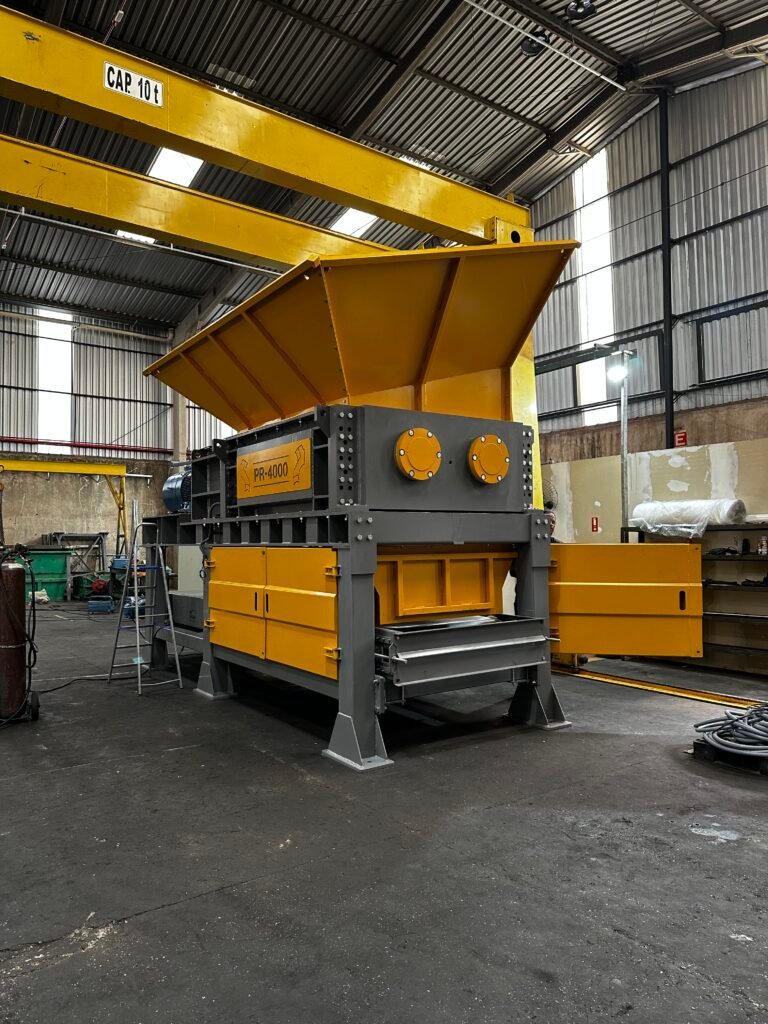

TRITURADOR PRIMÁRIO ALLIGATOR PR4000 e PR5000
BENEFITS

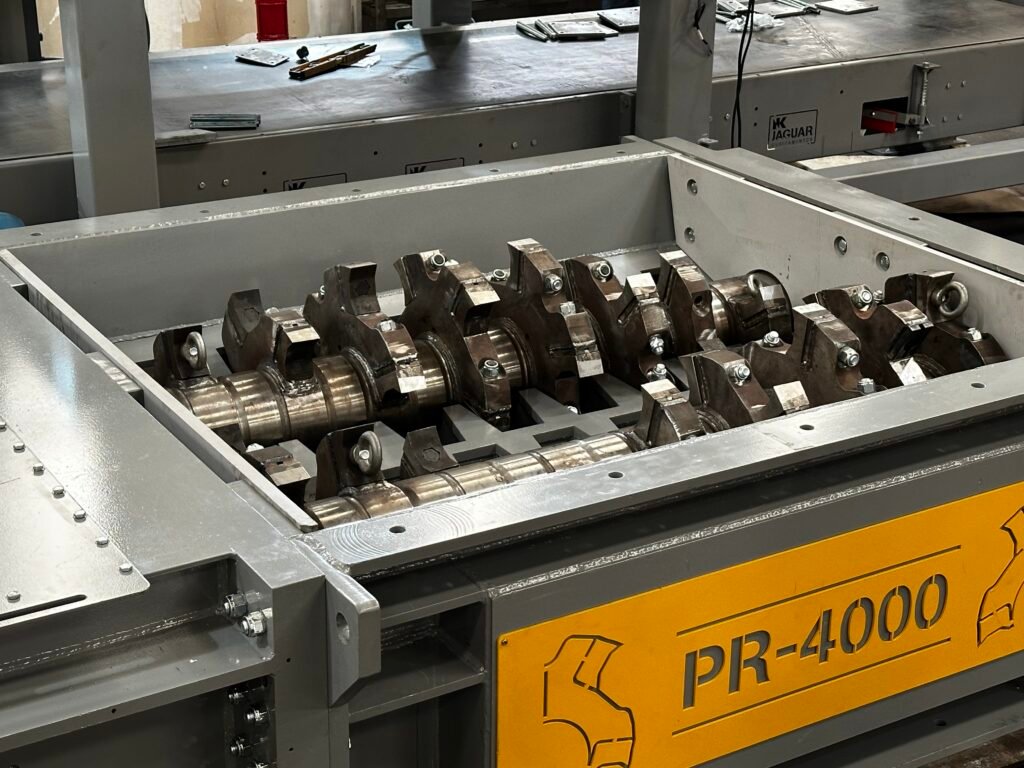

WHEEL OF THE SCREWED
Facas com insertos (pastilhas substituíveis) trazem uma vantagem bem objetiva: você troca só a parte que desgasta, não a faca inteira. Na prática isso reduz custo por tonelada processada, encurta o tempo de parada e facilita manter o corte “no ponto” sem depender de retrabalho pesado (solda, retífica extensa, etc.). Para operação contínua, isso vira previsibilidade: manutenção programada, estoque menor e menos dor de cabeça quando o material muda ou vem contaminado.
Outra vantagem é a flexibilidade de engenharia: dá para escolher insertos com materiais e geometrias diferentes (mais resistência a abrasão, mais tenacidade a impacto, ou um meio-termo) conforme o resíduo — sem redesenhar o conjunto todo. E como o corpo da faca pode ser pensado para absorver impacto enquanto o inserto segura o desgaste, você tende a ganhar vida útil mais estável, com desempenho consistente e menos “queda de rendimento” ao longo do ciclo. Em resumo: você paga menos por manutenção e ganha mais controle do processo.
TRANSFORME RESÍDUOS EM ENERGIA!
When you're trying to recycle the plastic post consumer, in the process of your preparation for the grain, and the recycling makes it a very difficult thing, because there are contaminants of all kinds, such as screws, bolts, nuts, stones, and other materials.
All of this resulted in damage to the mill, to the knife, and the stops are not provided.
With a high for the two axes of the Jaguar and Industrial, the materials can be pre-crushed, and it can facilitate the process of separation of the contaminants prior to grinding, as the machines are unaffected by contaminants






Be sure to check out all of the information that is in our catalog! We are the solution for the grinding of solid wastes! Regardless of the material to be broken, or the need for it.
